Barcode types: Essential guide to selecting the right one

In today’s digital-first business environment, barcodes play an essential role, serving a multitude of functions across various sectors. From the bustling aisles of retail stores to the expansive warehouses of logistics companies, barcode technology facilitates seamless inventory management, efficient checkout processes, and even enhances customer engagement. The variety of barcode formats and barcode standards available today cater to a diverse range of business needs, each offering unique benefits and capabilities.

As businesses strive to optimize their operations, the choice of an appropriate barcode system becomes crucial. Whether it’s speeding up transactions, tracking product information, or integrating with smart technology for better data management, the right barcode format can make a significant difference. This article explores the vast landscape of barcode options, providing insights into how each type can be tailored to meet specific business objectives and improve overall efficiency and connectivity. We'll delve into the traditional one-dimensional barcodes commonly seen on grocery items to the more complex two-dimensional types used in advanced applications, highlighting how these technologies connect various aspects of business operations to the digital world.

The anatomy of barcodes

Understanding the fundamental structure of barcodes is key to appreciating their versatility and functionality in various business contexts. Barcodes are essentially visual representations of data. They come in multiple styles and formats, each with unique characteristics tailored to different functional requirements and technological environments.

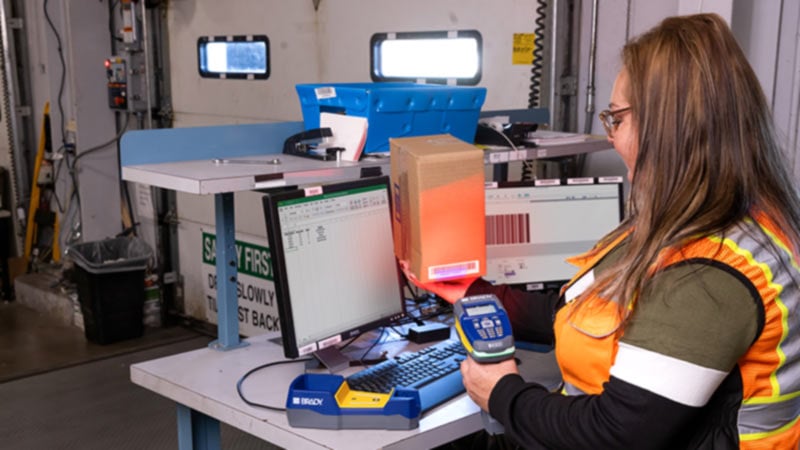

A warehouse worker scans an asset, and analyzes the scan using barcode software in an industrial setting.

Visual characteristics

One-dimensional (1D) barcodes:

Commonly recognized by their series of parallel lines, 1D barcodes are simple and straightforward. These barcodes encode data in the widths and the spacings of the parallel lines. They are highly effective for general merchandise and are widely used in retail for tracking inventory and speeding up the checkout process.

Two-dimensional (2D) barcodes:

Unlike their 1D counterparts, 2D barcodes can appear as squares or rectangles that contain a series of black and white blocks, dots, and other geometric patterns. These barcodes store information both horizontally and vertically, which allows them to hold a much larger amount of data. Examples include QR codes and Data Matrix codes, which can contain anything from a simple URL to complex information like images or signatures.

Encoding techniques

Linear encoding:

Used primarily in 1D barcodes, linear encoding involves varying the widths and spacings of parallel lines and spaces to represent different alphanumeric characters. This method is straightforward but limited in the amount of data it can store.

Matrix encoding:

Employed in 2D barcodes, matrix encoding uses a grid of cells to encode information, allowing for a much denser representation of data. This technique enables 2D barcodes to encapsulate complex information such as personal identifiers, multimedia files, and encryption keys.

Color and shape variability:

Some modern barcodes also incorporate colors and unique shapes to expand the data capacity and to enhance security features. For example, color barcodes use different hues to add layers of information within the same space that a traditional barcode would occupy.

Understanding these various barcode styles and encoding techniques is crucial for businesses to choose the right type of barcode that best fits their operational needs and technical infrastructure. The right choice enables more efficient data management, faster processing, and better integration with digital systems, all of which are integral to maintaining competitiveness in a digital-first marketplace. This foundational knowledge also sets the stage for deeper exploration into specific barcode types and their applications across different industries.

Comprehensive overview of 1d barcode types

One-dimensional barcodes, or 1D barcodes, are the backbone of many industries, offering a straightforward yet robust method for encoding data. These barcodes are typically used to manage inventory, process transactions, and facilitate operations in sectors ranging from retail to healthcare. This section provides a detailed look at some of the most common 1D barcode systems, accompanied by examples and visual aids to help distinguish between the various types used across different industries.

  • UPC (Universal Product Code)

    The Universal Product Code (UPC) is one of the most widely recognized barcode types in the world, especially prominent in the retail sector. Designed to streamline the checkout process and manage inventory efficiently, UPC barcodes are an essential tool for modern retail operations. The standard UPC-A variant, featuring 12 numeric digits, is a common sight on products ranging from grocery items to electronics across North America.

    • Visual characteristics: UPC barcodes consist of a series of 12 numeric digits that are represented by varying widths of bars and spaces. The standard UPC version, known as UPC-A, is ubiquitous on retail products throughout the United States and Canada.
    • Industry usage: Primarily used in retail for tracking trade items at the point of sale.
    • Example: A standard UPC-A barcode on a box of cereal to facilitate quick scanning at checkout.
    An example of a UPC 1D barcode type.

  • EAN (European Article Number)

    The European Article Number (EAN) is a pivotal barcode type utilized extensively in global retail environments to facilitate international trade and compliance. Similar in design to the UPC, the EAN barcode comes primarily in two forms: EAN-13, with its 13-digit numerical code widely used across Europe and other regions, and EAN-8, a shorter version designed for smaller items.

    • Visual characteristics: Similar to UPC codes but with 13 digits, EAN-13 barcodes are used globally, especially in Europe. There is also a shorter version, EAN-8, used for smaller items.
    • Industry usage: Extensively used in global retail environments, similar to UPC but accommodates international standards.
    • Example: EAN-13 barcode on a book, allowing for easy distribution and sales tracking across different countries.
    An example of an EAN 13 1D barcode type. An example of an EAN 8 1D barcode type.

  • Code 39

    • Visual characteristics: Code 39 barcodes can encode a combination of 39 characters, including digits, uppercase letters, and some special characters. Each character is represented by a series of bars and spaces in a pattern of nine elements.
    • Industry usage: Widely used in the automotive industry, manufacturing, and healthcare due to its ability to encode various characters.
    • Example: A Code 39 barcode on a vehicle part, enabling tracking throughout the manufacturing process and supply chain.
    An example of a Code 39 1D barcode type.

  • Code 128

    • Visual characteristics: Highly flexible and efficient, Code 128 barcodes can represent all 128 ASCII characters (numbers, letters, and control codes), encoded in a compact format.
    • Industry usage: Ideal for logistics and transportation, where quick scanning and a broad range of characters are necessary.
    • Example: Code 128 barcode used on shipping labels to facilitate the tracking and management of cargo.
    An example of a Code 128 1D barcode type.

  • ITF (Interleaved 2 of 5)

    • Visual characteristics: ITF barcodes are composed of bars and spaces representing two digits each, which makes them very dense and capable of encoding even numbers only.
    • Industry usage: Commonly used for packaging materials, including the marking of corrugated boxes.
    • Example: An ITF-14 barcode on a carton of beverages, ensuring efficient distribution and stock management.
    An example of a ITF (Interleaved 2 of 5) 1D barcode type.

  • Codabar

    • Visual characteristics: Codabar barcodes typically consist of numbers, plus signs, dashes, colons, slashes, and dots. They are known for their simplicity and their ability to be printed clearly in a variety of methods.
    • Industry usage: Commonly used in libraries, blood banks, and parcel services due to their excellent readability and self-checking capabilities.
    • Example: Codabar barcode on library books to automate the borrowing process.
    An example of a Codabar 1D barcode type.

  • Code 93

    • Visual characteristics: Similar to Code 39, but requires less space. It encodes 43 characters, including letters, numbers, and some special characters.
    • Industry usage: Often used by Canada Post for encoding additional delivery information.
    • Example: Code 93 barcode used on a mail package for tracking during shipment.
    An example of a Code 93 1D barcode type.

Exploring niche 1D barcode types

While the common 1D barcode systems like UPC, EAN, and Code 128 play crucial roles in mainstream retail and logistics, there are several niche barcode types that are indispensable in specific applications and industries. These less common but equally important barcodes offer tailored solutions that address unique challenges, such as encoding a wide range of characters, enhancing readability under difficult conditions, or providing high-density data storage in compact formats.

  • MSI Plessey
    • Visual characteristics: Consists of lines representing four bits (one numeral or decimal digit) and spaces that are used to encode numeric information.
    • Industry usage: Primarily used in warehouse shelves, grocery store inventory, and sometimes on retail shelves.
    • Example: MSI Plessey barcode used on retail shelf tags to manage inventory.

  • Pharmacode
    • Visual characteristics: Uses thick and thin bars to encode a single integer from 3 to 131070.
    • Industry usage: Specifically designed for the pharmaceutical industry for the control of packaging.
    • Example: Pharmacode on a drug package to ensure correct medication dispensing.

  • GS1 DataBar
    • Visual characteristics: A family of symbols that are part of the global GS1 system but more compact than a typical UPC or EAN.
    • Industry usage: Used on fresh food products and can carry more information than older barcode types, including the item's batch number or expiry date.
    • Example: GS1 DataBar on a fresh produce item to provide detailed product information at checkout.

  • Standard 2 of 5 (Industrial 2 of 5)
    • Visual characteristics: Consists of narrow and wide bars to encode numeric data.
    • Industry usage: Primarily used in industrial environments for inventory management where robustness against harsh conditions is required.
    • Example: Used on warehouse inventory labels to track asset locations under various environmental conditions.

  • Code 11
    • Visual characteristics: Encodes numbers and the dash symbol with a series of narrow and wide bars.
    • Industry usage: Often employed in telecommunications for labeling and tracking equipment.
    • Example: Barcode on telecom equipment to facilitate tracking and maintenance schedules.

  • LOGMARS
    • Visual characteristics: A variation of Code 39, using thick black bars and wider spaces to improve readability.
    • Industry usage: A military-standard barcode used by the U.S. Department of Defense for managing supplies and equipment.
    • Example: Applied on military equipment for accurate tracking and inventory control.

  • Telepen
    • Visual characteristics: Uses a series of ascents and descents in height to encode the full ASCII character set.
    • Industry usage: Popular in the UK, especially in libraries, for its ability to encode full ASCII characters.
    • Example: Barcode on library books allowing for complex data encoding of bibliographic information.

These examples and visual representations illustrate how 1D barcodes function as an integral part of various industry operations, from retail product identification to complex supply chain management. Understanding the specific characteristics and applications of each barcode type helps businesses select the most suitable system for their needs, enhancing efficiency and accuracy in data management and operations.

Unlocking the potential of 2D barcodes

Two-dimensional (2D) barcodes have revolutionized data encoding systems with their ability to store a vast amount of information within a relatively small physical space. Unlike their 1D counterparts, 2D barcodes can encode information both horizontally and vertically, dramatically increasing their data capacity. This section delves into some of the most popular 2D barcode systems, such as QR codes and Data Matrix codes, showcasing their practical applications and providing real-world examples from marketing to product labeling.

  • QR Codes

    • Visual characteristics: QR codes consist of black squares arranged in a square grid on a white background, readable by digital devices like smartphones.
    • Industry usage: Extensively used in advertising, retail, and event management.
    • Example: A QR code on a movie poster linking to a trailer video or on a restaurant table for accessing the digital menu. These codes enhance customer engagement by providing easy access to digital resources directly.
    An example of a QR code 2D barcode type.

  • Data Matrix Codes

    • Visual characteristics: Composed of black and white cells within a square or rectangular matrix, Data Matrix codes are similar to QR codes but can store more data per unit area.
    • Industry usage: Commonly used in electronics manufacturing, healthcare, and logistics for tracking items throughout their lifecycle.
    • Example: Data Matrix codes on electronic parts to trace their origin and production history, or on pharmaceutical products to track batch numbers and expiration dates.
    An example of a Data Matrix 2D barcode type.

  • PDF417

    • Visual characteristics: Appears as a small rectangle filled with tiny hexagonal and square shapes. It is capable of storing large amounts of data efficiently.
    • Industry usage: Widely used in transportation, for example, on driver's licenses and airplane boarding passes.
    • Example: PDF417 barcodes on a U.S. driver’s license include encrypted information such as personal details and license number.
    An example of a PDF417 2D barcode type.

  • Aztec Code

    • Visual characteristics: Characterized by a central square pattern surrounded by concentric square rings; it resembles an Aztec pyramid.
    • Industry usage: Commonly used in transportation for tickets, especially since they can be read by scanners even if they are displayed on a smartphone screen.
    • Example: Aztec codes are used in European train systems for e-tickets, which passengers can display on their mobile devices.
    An example of an Aztec Code 2D barcode type.

2D barcodes like QR codes, Data Matrix, and others are pivotal in today's digital landscape, providing substantial data capacity and versatility across multiple industries. As businesses increasingly integrate digital solutions, the importance of these barcodes continues to rise, enhancing operational efficiencies and enriching customer engagements. Leveraging these advanced technologies can markedly improve both business processes and consumer interactions.

Additional 2D Barcodes:

  • MaxiCode
    • Visual characteristics: Made up of hexagonal modules arranged around a central finder pattern. It looks somewhat similar to a QR code but is usually smaller and more compact.
    • Industry usage: Primarily used by United Parcel Service (UPS) for sorting and managing package shipments.
    • Example: MaxiCode labels on shipping packages to streamline the process of sorting and delivery.

  • Micro QR Code
    • Visual characteristics: A smaller version of the standard QR code, designed to hold less information but to be readable in a smaller space.
    • Industry usage: Useful for applications where space is limited, such as product labeling for small consumer goods.
    • Example: Micro QR codes on electronic component labeling, where space is at a premium.

Choosing the right barcode for your needs

When considering the vast world of barcodes, a common question arises: "How many barcodes are there?" The answer reveals the extensive range of barcode systems developed to meet the diverse needs of industries worldwide. From the simplicity of 1D barcodes to the complex information capacity of 2D codes, the choice in barcode technology is broad, reflecting a spectrum of functionalities designed for specific purposes.

The breadth of barcode options

Barcodes are categorized primarily into two types: one-dimensional (1D) and two-dimensional (2D). Each category is further divided into numerous styles, each tailored for particular environments and tasks:

  • 1D barcodes: Simple and efficient, these barcodes store data in lines and spaces of various widths. Common types include UPC, EAN, Code 39, and ITF, each prevalent in sectors like retail, healthcare, and industrial applications.
  • 2D barcodes: These contain information in two dimensions and can hold a significant amount of data in a smaller space. QR Codes, Data Matrix, Aztec Code, and PDF417 are examples that are utilized for everything from marketing campaigns to ticketing and personal identification.

Considerations for barcode selection

Selecting the right barcode for your business involves considering several factors:

  • Data capacity: What amount of information needs to be encoded?
  • Scanning environment: Will the barcode be scanned indoors, outdoors, or in harsh conditions?
  • Print size: How much physical space is available on your item for printing the barcode?
  • Regulatory requirements: Are there industry-specific regulations or barcode standards that dictate the type of barcode you must use?
  • Integration needs: How will the barcode system integrate with your existing processes and systems?

Industry-specific types

In addition to general-use barcodes, there are niche barcodes developed for specialized applications. For instance:

  • LOGMARS is used by the U.S. Department of Defense for logistical support.
  • Telepen, favored in the UK, is often seen in libraries due to its ability to encode full ASCII characters efficiently.
  • MaxiCode is used primarily by shipping companies like UPS for quick and effective sorting and tracking of packages.

By understanding the different types of barcodes and the specific advantages they offer, businesses can make informed decisions that align with their operational goals and technical requirements. This strategic approach ensures that the chosen barcode not only meets immediate needs but also supports long-term efficiency and scalability.

Step-by-Step Guide to Implementing Barcodes

  1. Assess Needs: Determine what items or data need tracking and the level of detail required.
  2. Choose Barcode Type: Decide between 1D and 2D barcodes based on data capacity and application requirements.
  3. Select Scanners: Choose compatible scanners, whether handheld barcode scanners for mobility or wired barcode scanners for high-volume scanning.
  4. Pick Software: Select software that integrates seamlessly with your existing systems and supports your barcode types.
  5. Design and Print Labels: Create barcode labels using high-quality printing solutions to ensure durability and readability.
  6. Test and Train: Conduct pilot tests to ensure system functionality and train staff on barcode usage and troubleshooting.
  7. Implement and Monitor: Roll out the barcode system and continuously monitor its performance to make necessary adjustments.

Understanding various barcode types is crucial for selecting the most effective system tailored to your business’s needs. This insight helps optimize operations, ensure accurate data capture, and integrate seamlessly with digital systems. By carefully choosing the right barcode, you can enhance efficiency, productivity, and overall connectivity, ensuring long-term success and competitiveness in a digital-first marketplace.
